Silverlight と Windows Azure を組み合わせる(3)

はじめに

前回で Windows Azure Storage Service(以下 WASS) を使用する WCF サービスを作って、WebRole にホストさせました。
今回は仕上げとして、Silverlight アプリケーションから WCF サービスを呼び出すようにします。

Silverlight のプロジェクトにサービス参照を追加

ソリューション内を検索して、WebRole プロジェクトにある WCF サービスを指定します。

WCF サービスを呼び出すコードを記述

public partial class Page : UserControl
{
    public Page()
    {
        InitializeComponent();
    }

    private void Button_Click(object sender, RoutedEventArgs e)
    {
        ServiceReference1.SlipReportServiceClient client = new SlipReport_Page.ServiceReference1.SlipReportServiceClient();
        client.FindCompleted += new EventHandler<SlipReport_Page.ServiceReference1.FindCompletedEventArgs>(client_FindCompleted);
        client.FindAsync(_beginDate.SelectedDate.Value, _endDate.SelectedDate.Value);
    }

    private void client_FindCompleted(object sender, SlipReport_Page.ServiceReference1.FindCompletedEventArgs e)
    {
        if (e.Cancelled)
        {
            MessageBox.Show("集計がキャンセルされました。");
        }
        else if (e.Error != null)
        {
            MessageBox.Show(e.Error.Message);
        }
        else
        {
            _dataGrid.DataContext = e.Result;
        }
        ((ServiceReference1.SlipReportServiceClient)sender).CloseAsync();
    }
}

サービス参照の追加で生成された Proxy を呼び出します。XAML は変更していません。

テストデータを用意

StorageAccountInfo account = StorageAccountInfo.GetDefaultTableStorageAccountFromConfiguration();
SlipDataServiceContext context = new SlipDataServiceContext(account);
context.RetryPolicy = RetryPolicies.RetryN(3, TimeSpan.FromSeconds(1));

// Table にデータを入れる
string name = SlipDataServiceContext.SlipTableName;
context.AddObject(name, new SlipEntity(name, "1")
{
    Date = new DateTime(2009, 2, 1),
    No = 1,
    ProductName = "Word",
    Amount = 20000
});
context.AddObject(name, new SlipEntity(name, "2")
{
    Date = new DateTime(2009, 2, 8),
    No = 1,
    ProductName = "Excel",
    Amount = 15000
});
context.SaveChangesWithRetries();

Table にあらかじめデータを入れておきます。このコードはコンソールアプリケーションで実行。

実行してみます

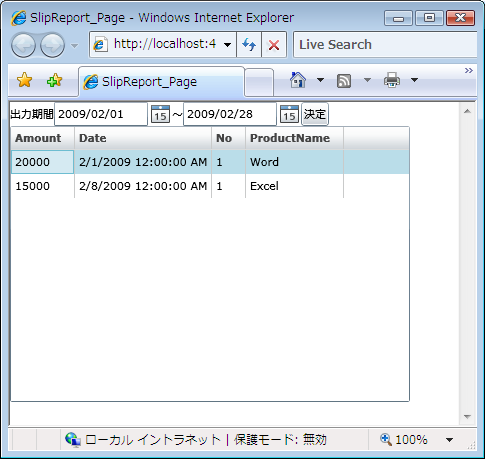

f:id:griefworker:20090217104733p:image
期間を指定してボタンを押すと集計が開始され、結果が DataGrid に表示されます。

まとめ

  • Silverlight から直接 StorageClient ライブラリを呼び出せない
  • Silverlight アプリケーションは WebRole にホストさせることが可能
  • WCF サービスからは StorageClient を利用できる
  • WCF サービスを WebRole にホストさせることが可能
  • Silverlight からは WCF サービスを呼び出せる
  • WCF を使って間接的に Silverlight から WASS を使用できそう

でも前に書きましたが、これは良い方法じゃ無いと思います。また、キーを持っていないため Azure Platform 上で動作確認していませんorz

SilverlightWindows Azure に関して情報をお持ちの方はぜひ教えて下さい><
